Combo Search Light
| Combo Search Light | |
|---|---|
| White Light Beam | |
| Nominal Voltage | 24VDC (reverse polarity protection) |
| Operating Voltage | 10-32VDC |
| Load Dump tolerable | 70VDC |
| Maximum power | 65W |
| Luminous output | 5100lm |
| Luminous intensity | ~410.000cd |
| Range | 500m |
| Beam angle FWHM | 8° (circular beam) |
| CCT (Correlated Colour Temperature) | 5000K |
| CRI (Colour Rendering Index) | >80 |
| Infrared Light Beam | |
| Nominal Voltage | 24VDC (reverse polarity protection) |
| Operating Voltage | 10-32VDC |
| Load Dump tolerable | 70VDC |
| Maximum power | 50W |
| Total Radiant Flux | ~8.100 mW |
| Range | 400m |
| Beam angle | FWHM 12° (circular beam) |
| Peak Wavelength | 950nm |

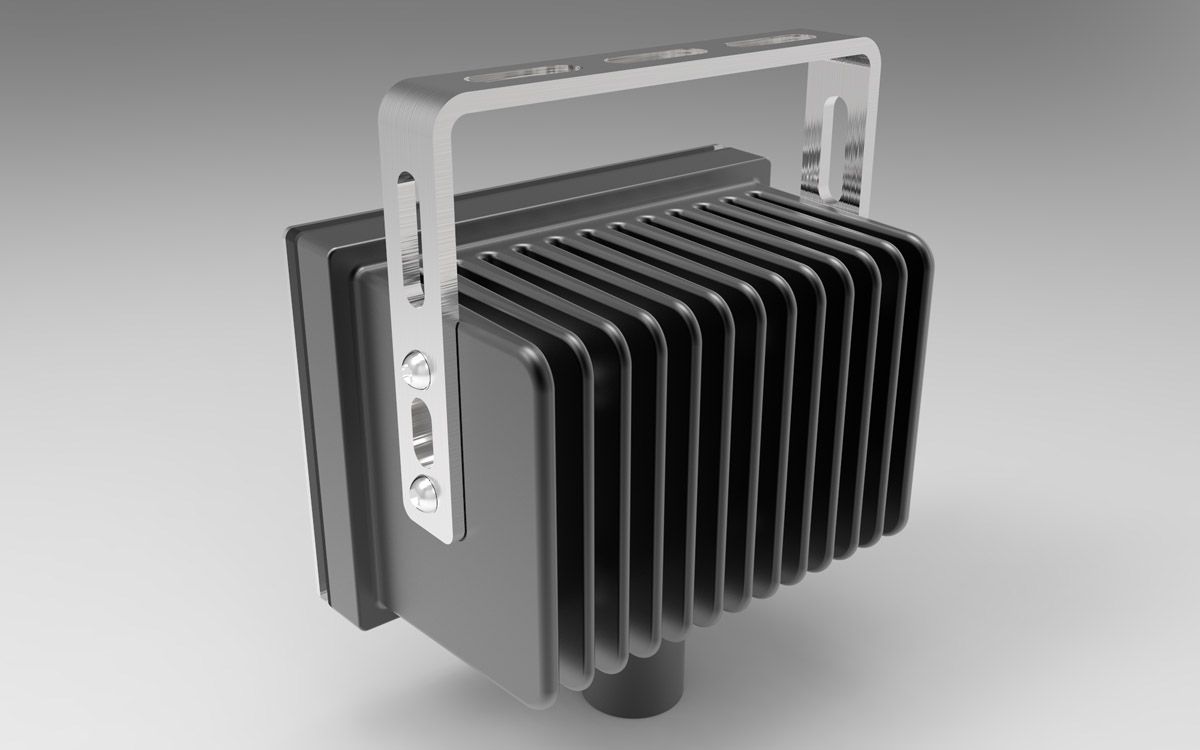

Compact Search Light is suitable for use on combat armoured vehicles, military tanks, trucks or terrain vehicles.
This product is unique because in one housing there are both visible and IR light sources. It provides high intensity LED performance of 410.000cd, with the addition of Infrared (IR) Illuminators for night observation.
It operates successfully in the most demanding environments, illuminating targets at long distances.
White LED light source – the 6000K Color Correlated Temperature provides outstanding visibility in mesopic (night) vision conditions.
Infra-Red light source – enables night observation with a strong IR beam of, the same range as the white light.
Less power consumption – LED technology consumes 6 times less energy compared to incandescent bulbs for the same light flux.
Longer range – because of precision optics on each individual LED diode it is possible to focus the light beam and achieve a greater range.
- Maintenance free – the life expectancy is over 60.000 hours without maintenance, no bulbs to change.
- Robust housing – provides excellent mechanical protection and thermal management.
- Practical handle – enables better light steer and handling.
- Military and Defence
- Marine and Coast guard
- Prison and Security
- Homeland and Border
- Unique product on the market
- State of the art technology
- Two light sources in one housing
- Low power consumption
- Maintenance free
| Combo Search Light | |
|---|---|
| White Light Beam | |
| Nominal Voltage | 24VDC (reverse polarity protection) |
| Operating Voltage | 10-32VDC |
| Load Dump tolerable | 70VDC |
| Maximum power | 65W |
| Luminous output | 5100lm |
| Luminous intensity | ~410.000cd |
| Range | 500m |
| Beam angle FWHM | 8° (circular beam) |
| CCT (Correlated Colour Temperature) | 5000K |
| CRI (Colour Rendering Index) | >80 |
| Infrared Light Beam | |
| Nominal Voltage | 24VDC (reverse polarity protection) |
| Operating Voltage | 10-32VDC |
| Load Dump tolerable | 70VDC |
| Maximum power | 50W |
| Total Radiant Flux | ~8.100 mW |
| Range | 400m |
| Beam angle | FWHM 12° (circular beam) |
| Peak Wavelength | 950nm |
