Marine LED Floodlight - Drydock lighting
| MARINE LED FLOODLIGHT | MLFL-150 | MLFL-120 | MLFL-150-spot |
|---|---|---|---|
| Electrical Characteristics | |||
| Nominal Voltage | 110 - 230VAC; 50 - 60 Hz | ||
| Operating Voltage | 90 - 305VAC; 110 - 400VDC | ||
| Total Power | 150W | 120W | 150W |
| Power Factor | > 0,95 | > 0,95 | > 0,95 |
| Total Harmonic Distortion | <20 % | ||
| Operating Temperature | -40°C to +50°C | ||
| Light Technology Characteristics | |||
| Initial Total Lumens | ~22000lm | ~16000lm | ~18000lm |
| Luminary Efficacy | ~145lm/W | ~135lm/W | ~120lm/W |
| CCT (Correlated Colour Temperature ) | 4500K to 5500K | ||
| CRI (Colour Rendering Index) | 80 - 85 | ||
| Light Angle | 120° | 120° | 60° or 90° |
| Protection, Construction, Dimensions | |||
| IP Rating | IP 66 | ||
| Protection | IK10, OVP, OTP | ||
| Removable Protective Cover | Self-adhesive protective PET foil; 0,3mm thick | ||
| Housing | Aluminium alloy powder painted or cataphoresis | ||
| Fixture Weight | 6kg | ||
| Dimensions | D380 x H114mm | ||

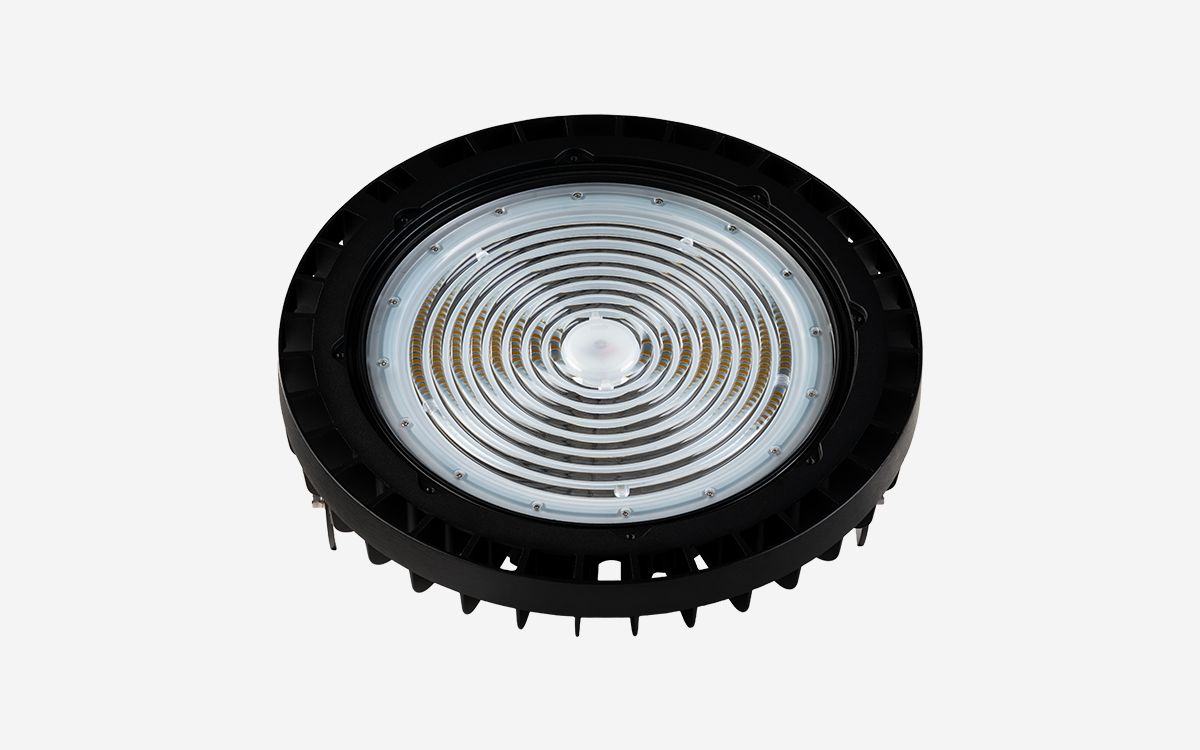

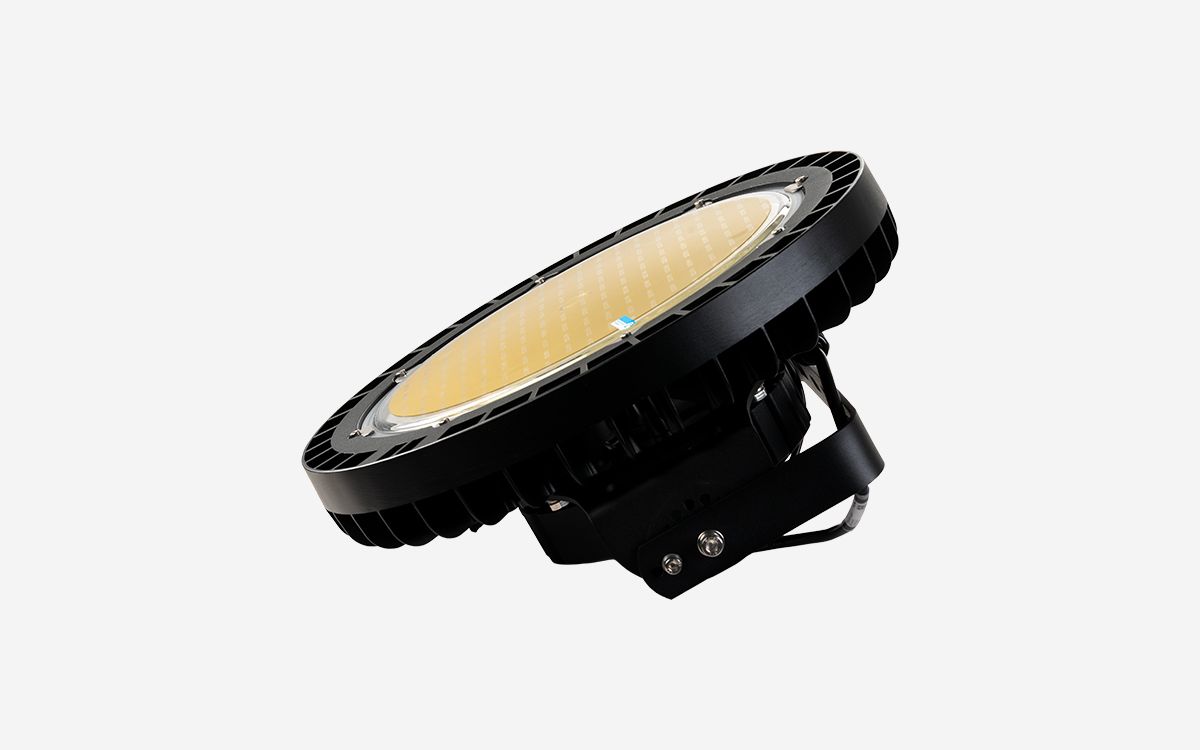

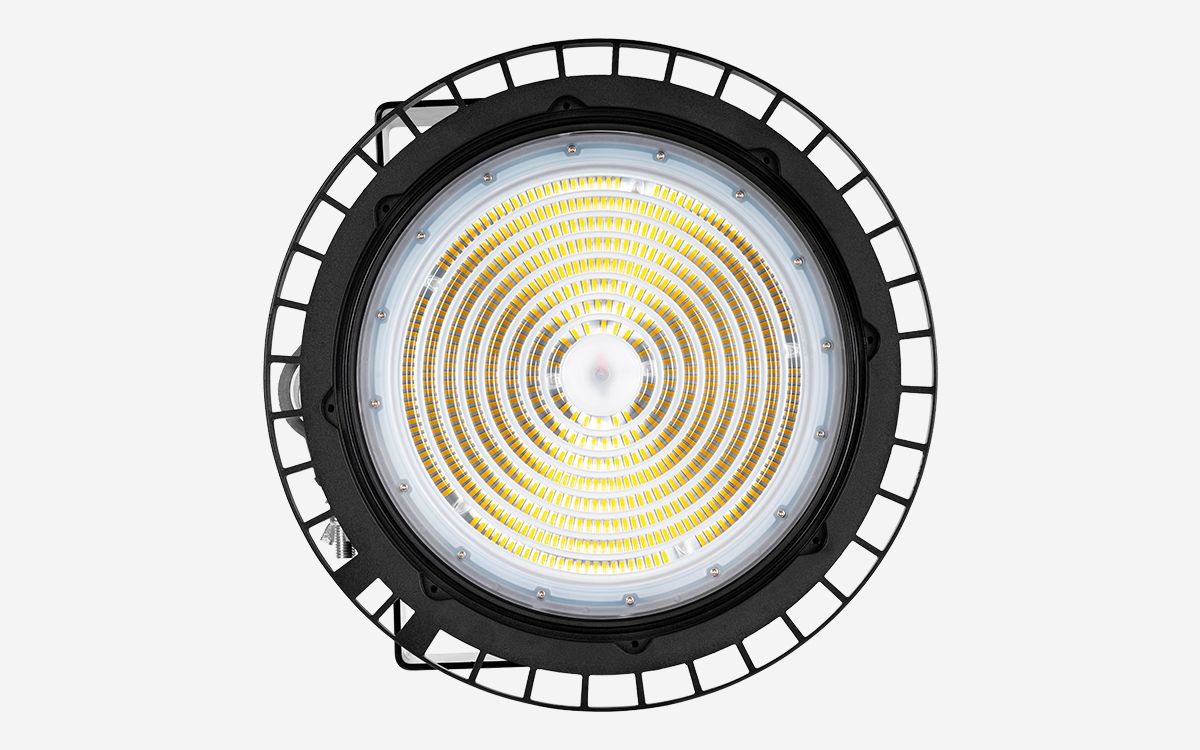

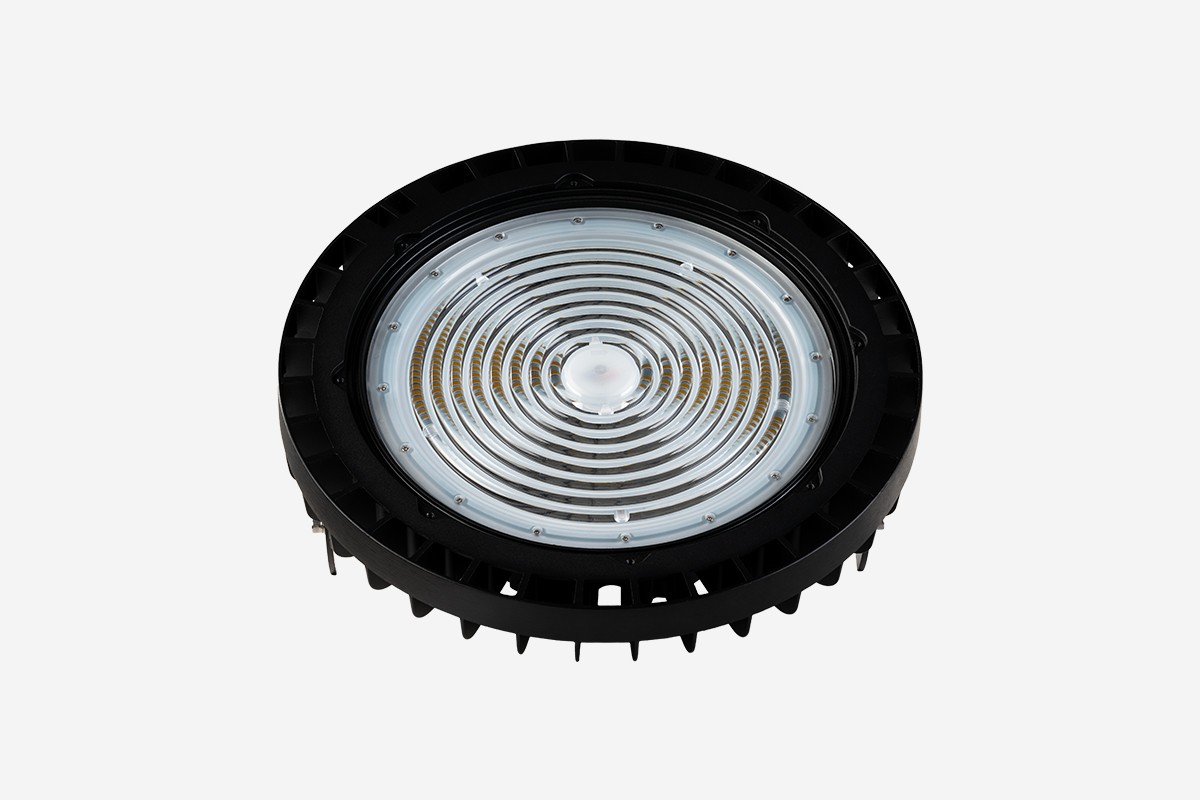

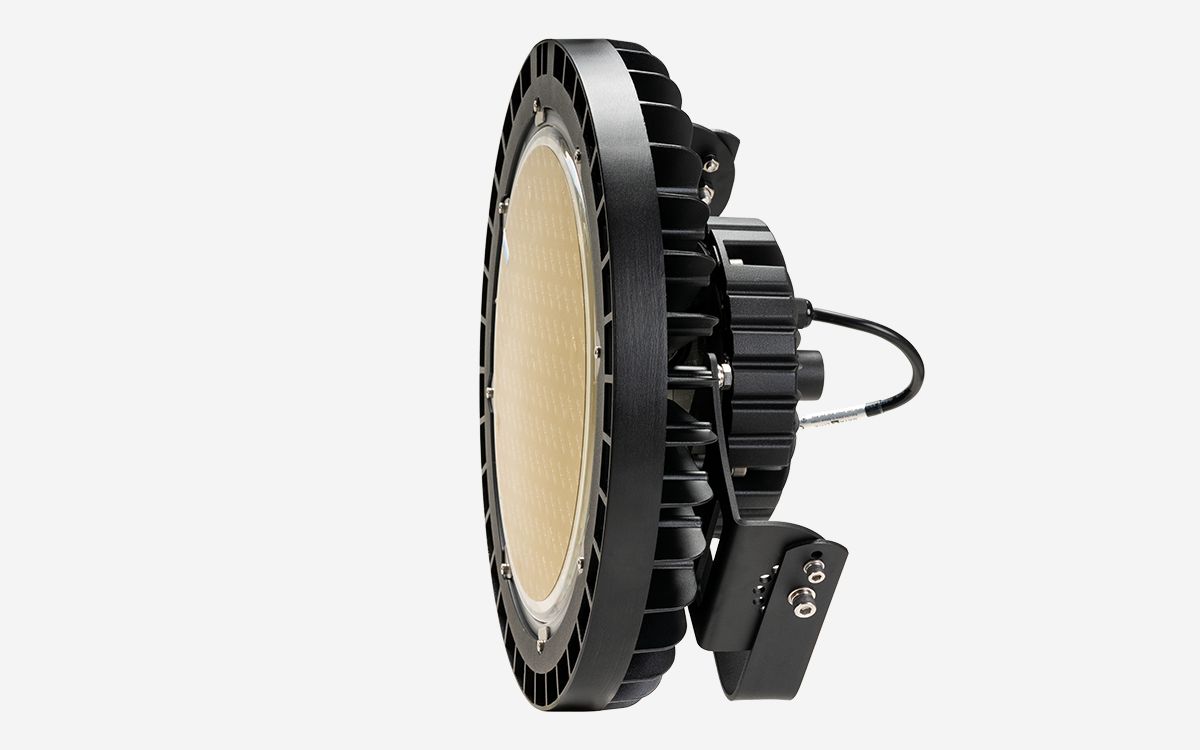

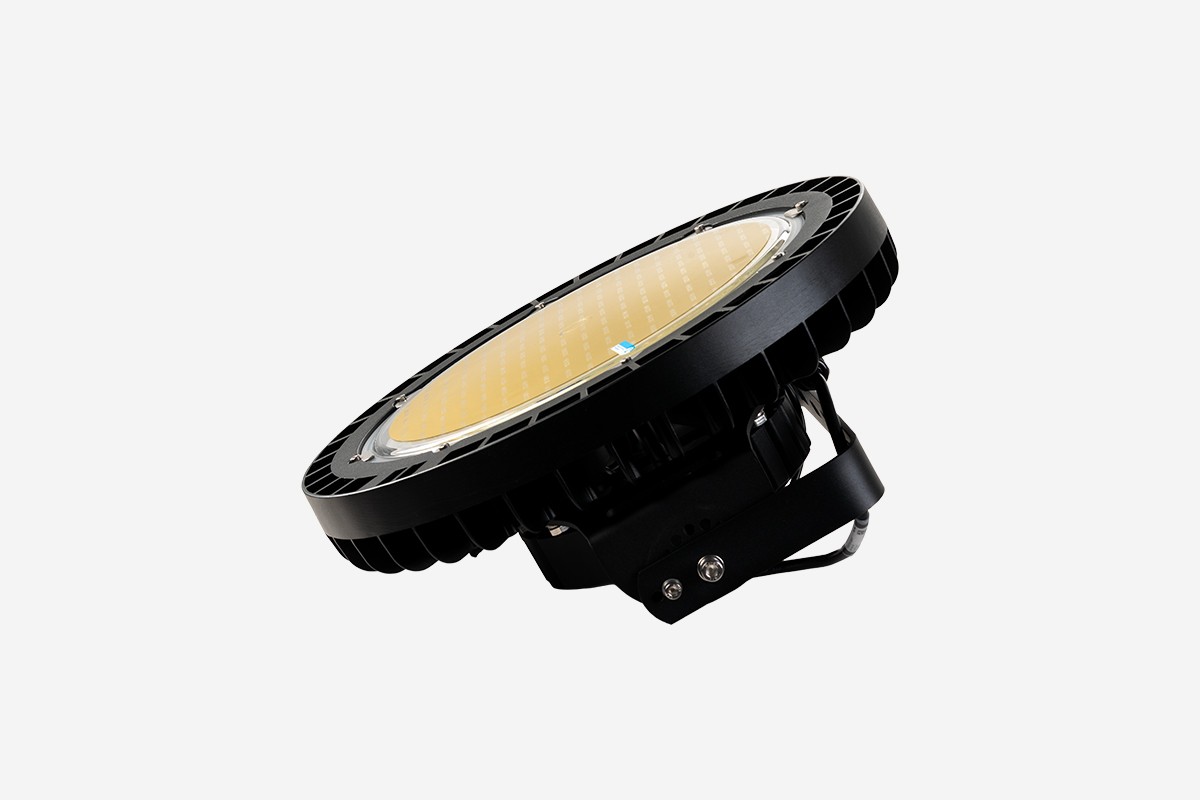

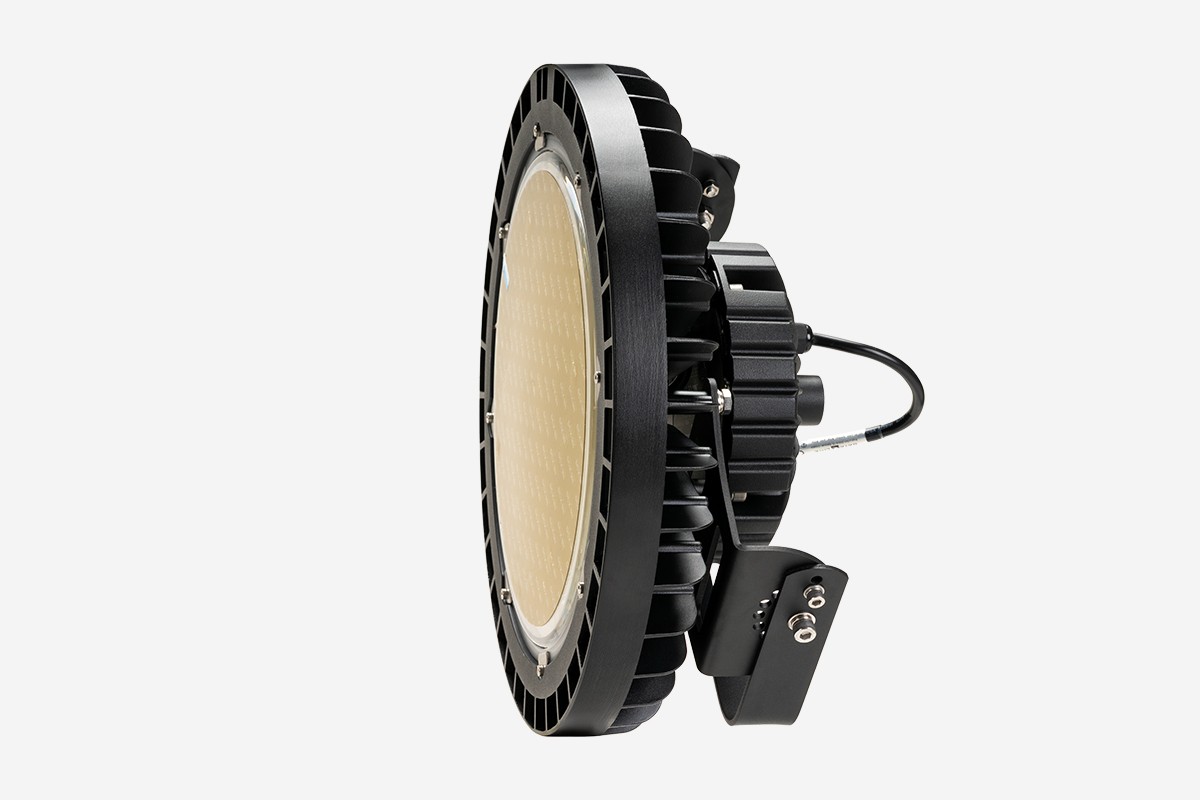

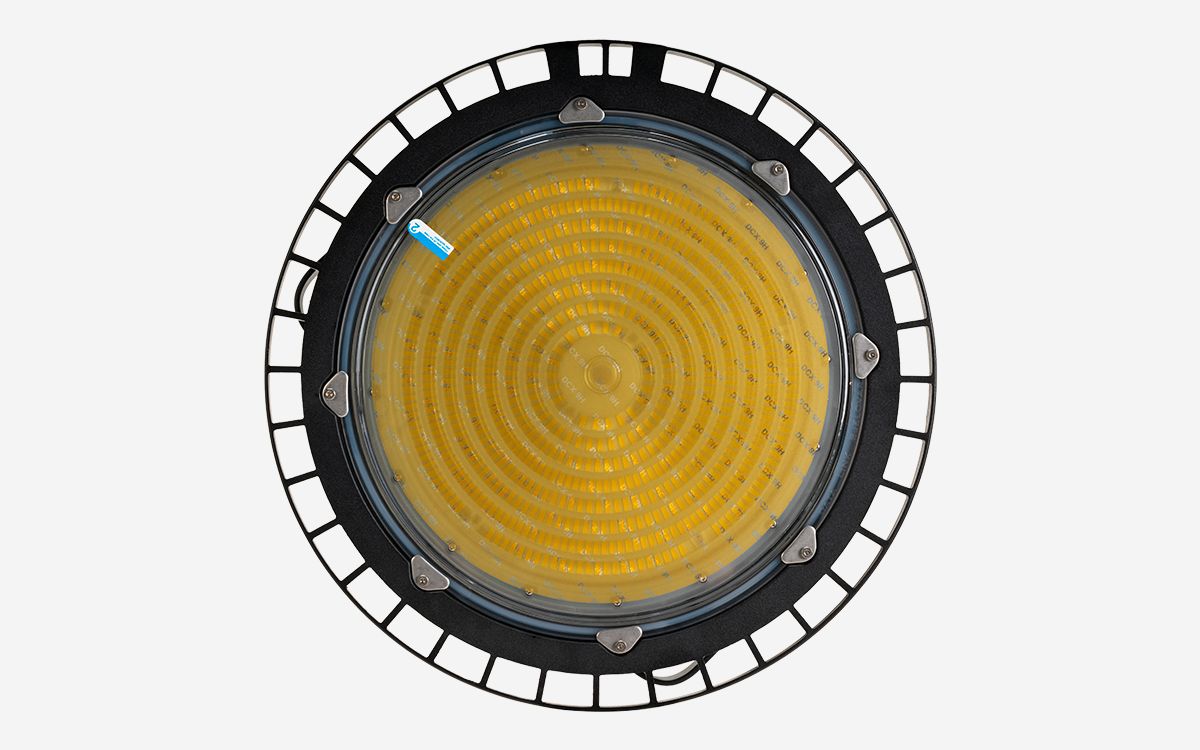

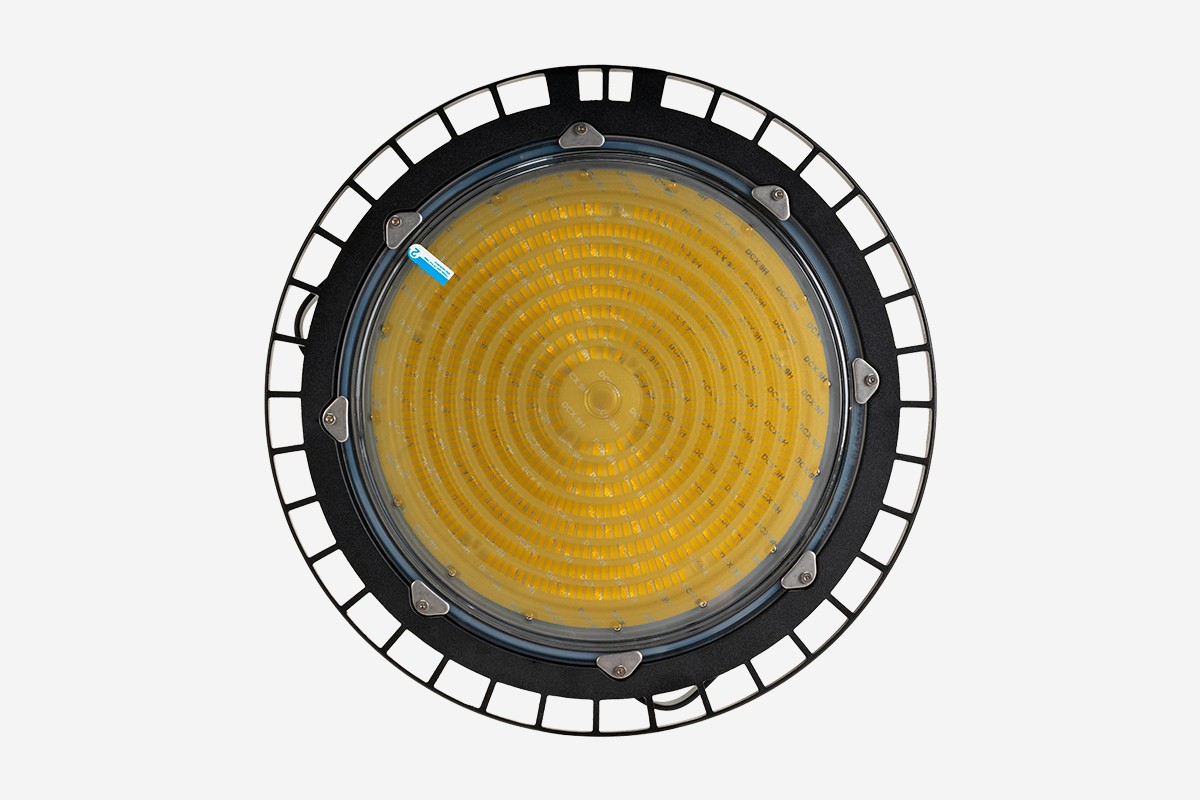

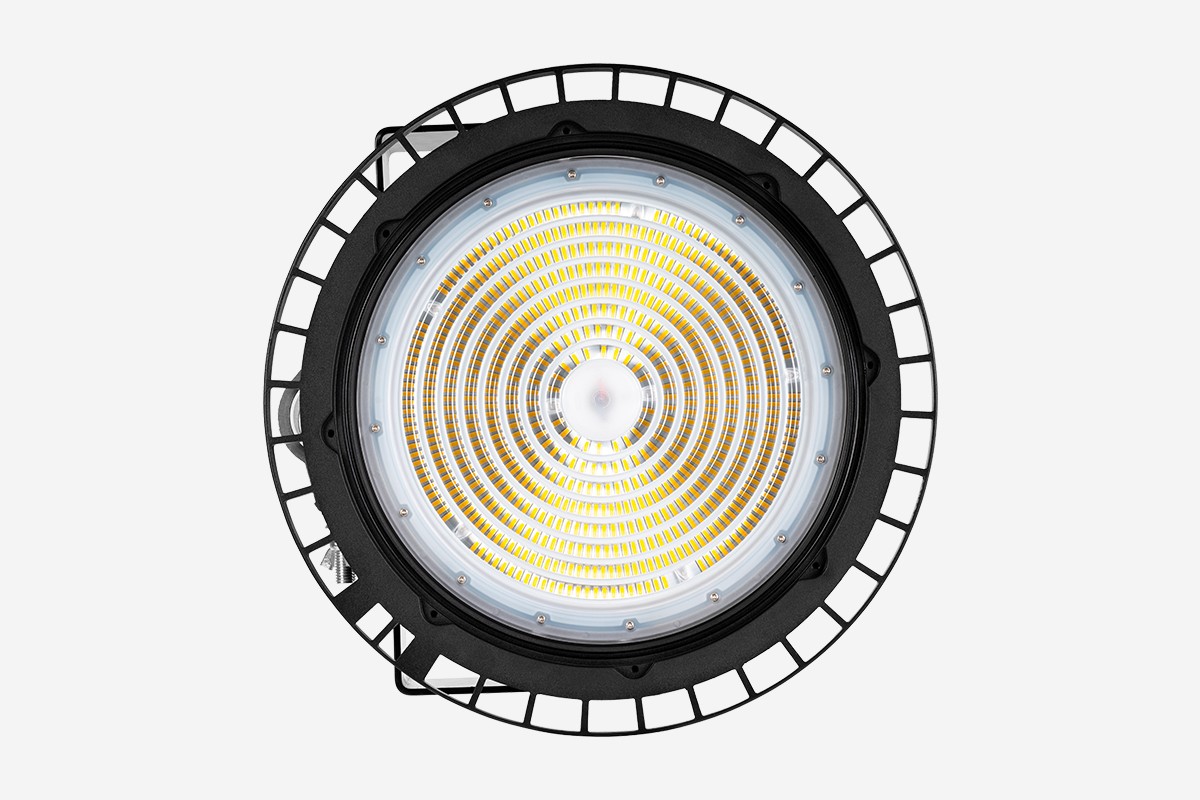

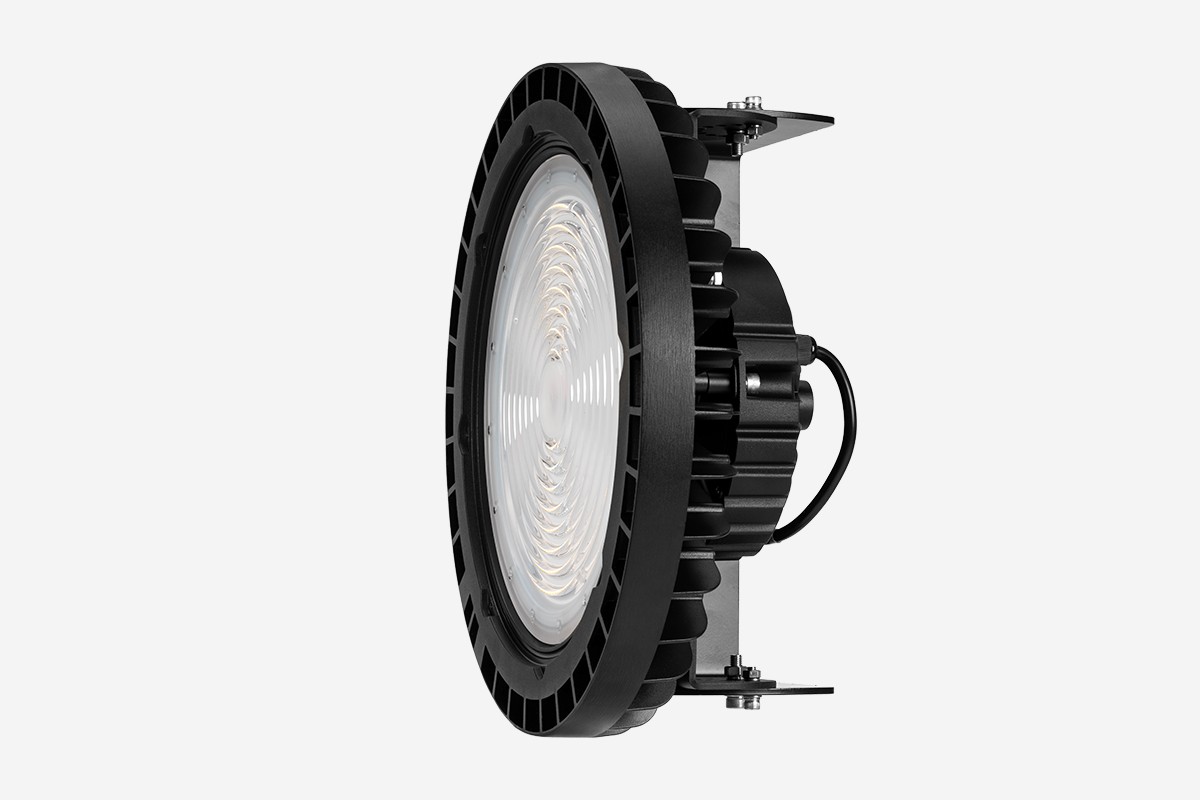

The Marine LED Floodlight is a model of drydock lighting specially developed and designed to meet the highest requirements for safety, endurance and quality of work lighting. The drydock reflector is made in accordance with the CENELEC norm HD63751 which ensures the highest worker safety and working efficiency.
In addition to its outstanding power, endurance and safety, the key advantage of the Marine LED Floodlight is an 8 times higher energy efficiency compared to classic incandescent lighting, which results in significant financial savings and a smaller number of reflectors required to carry out the work.

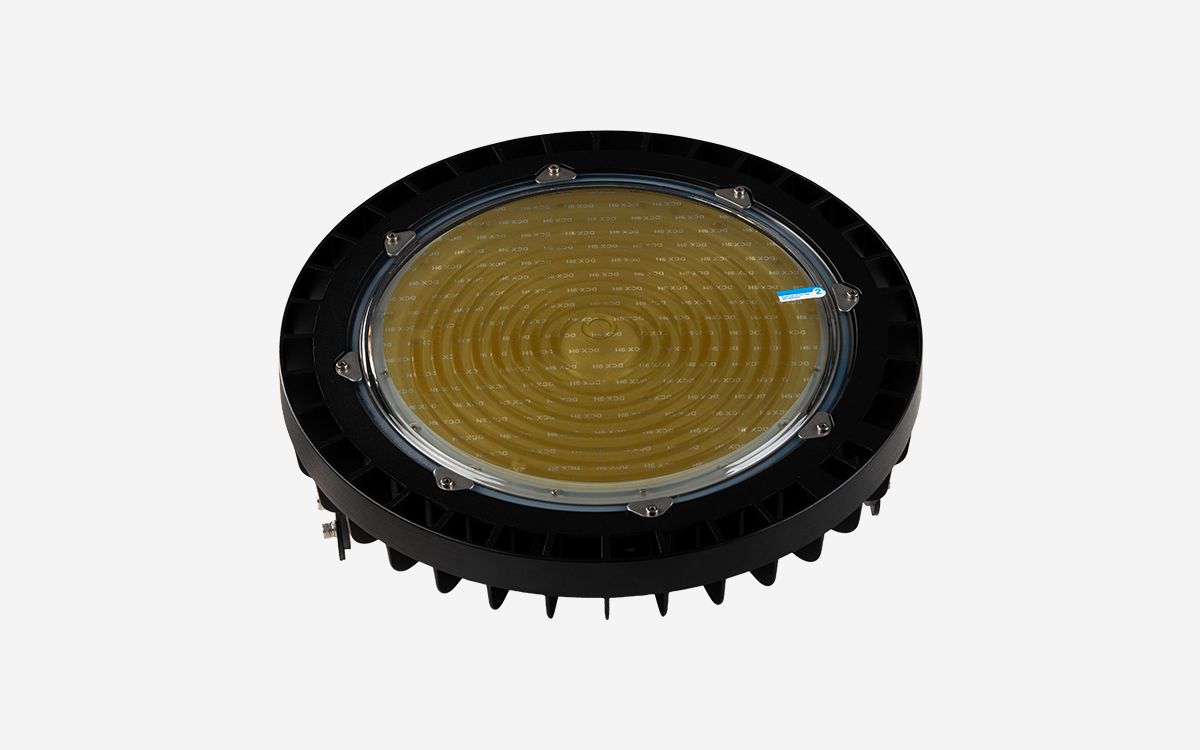

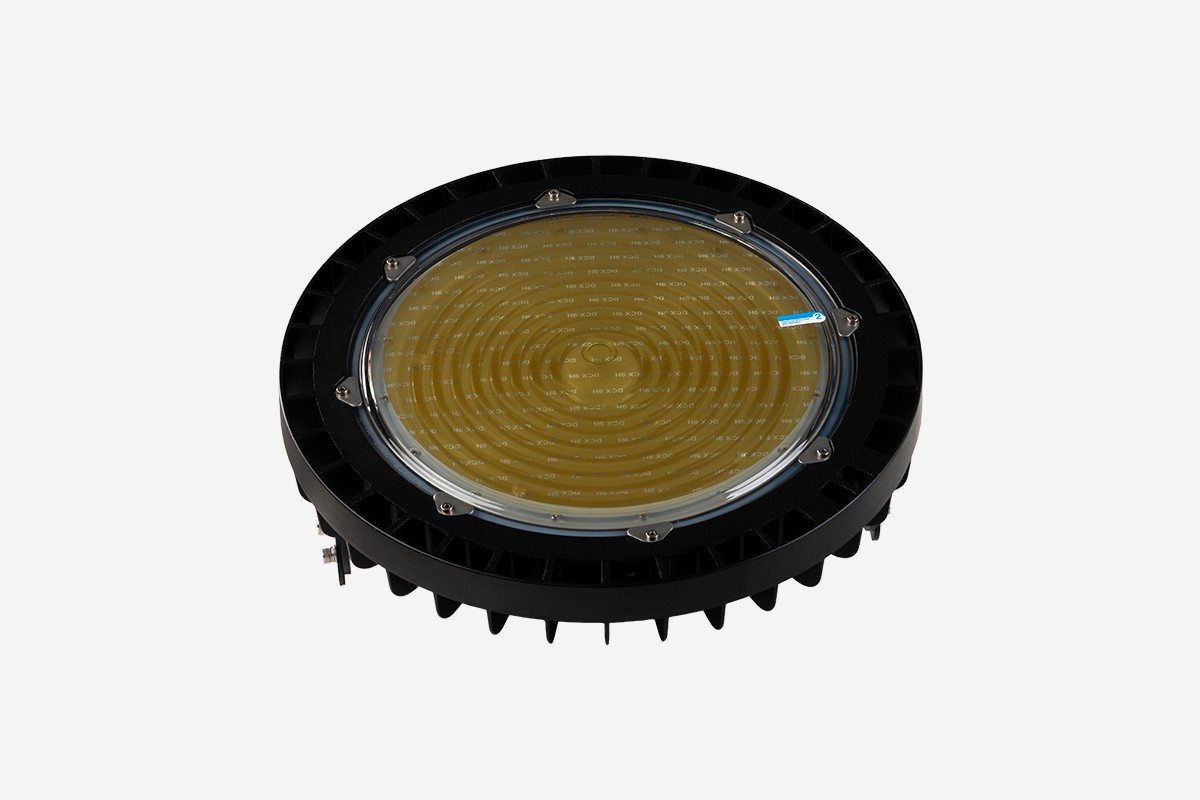

The Marine LED Floodlight has no breakable glass components, it is resistant to dust and high pressure jets and has mechanical protections IP 66 and IK 10. Additionally, the reflector is equipped with a replaceable, transparent protective foil that further protects the lamp from external influences.
The lamp can be equipped with different types of lenses, angels of light beams from 300, 600, 900 and 1200.
The supply voltage can be 42VAC, which is low, safety voltage or standard voltage of 230VAC.
The Marine LED Floodlight is available in two versions:
- On a trolley made from stainless steel as portable work lighting

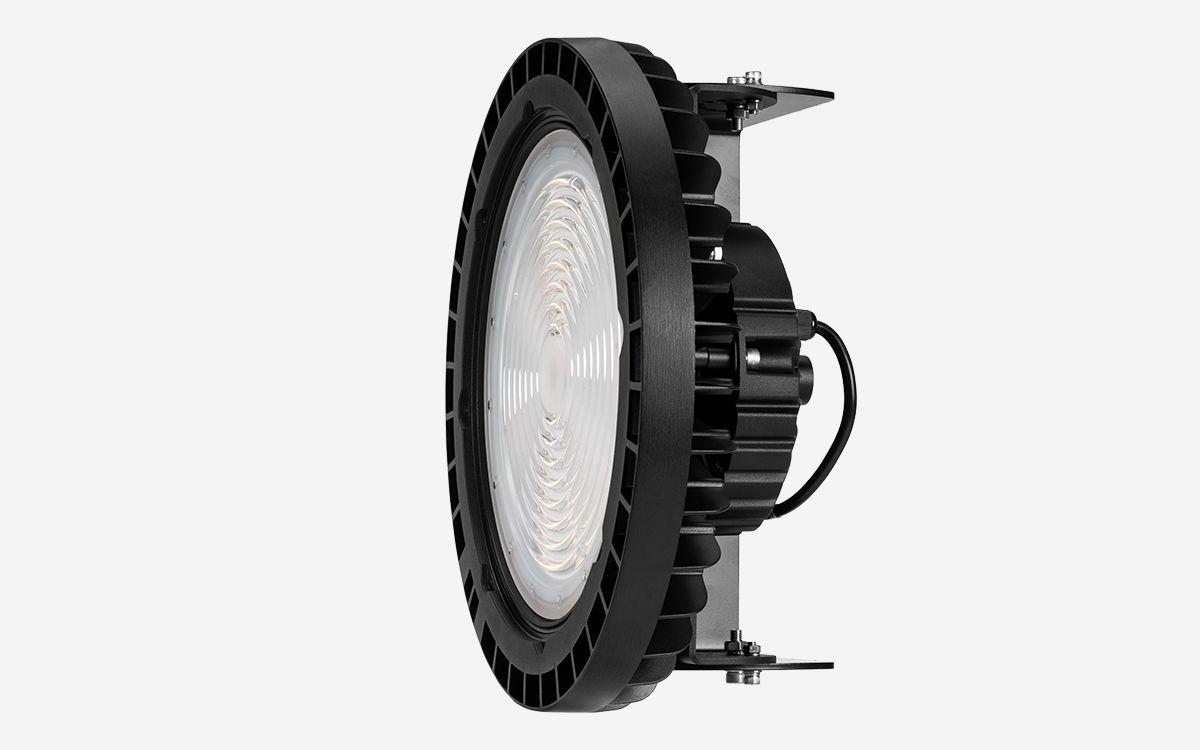

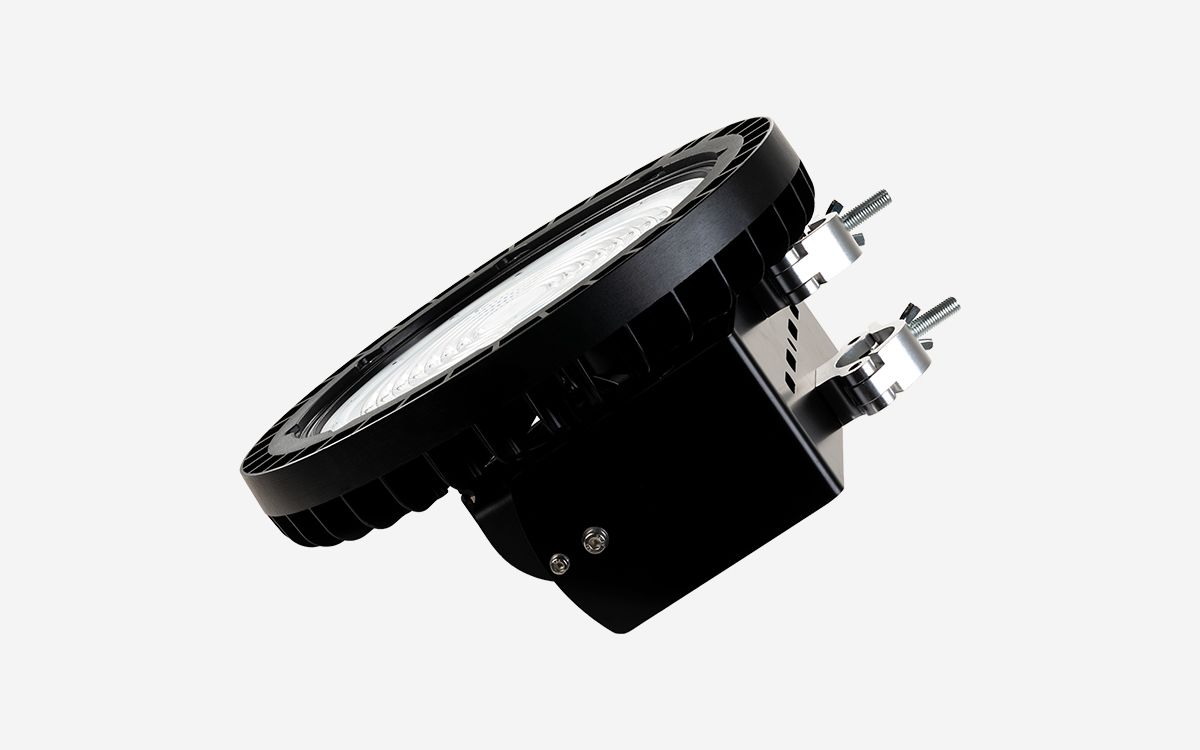

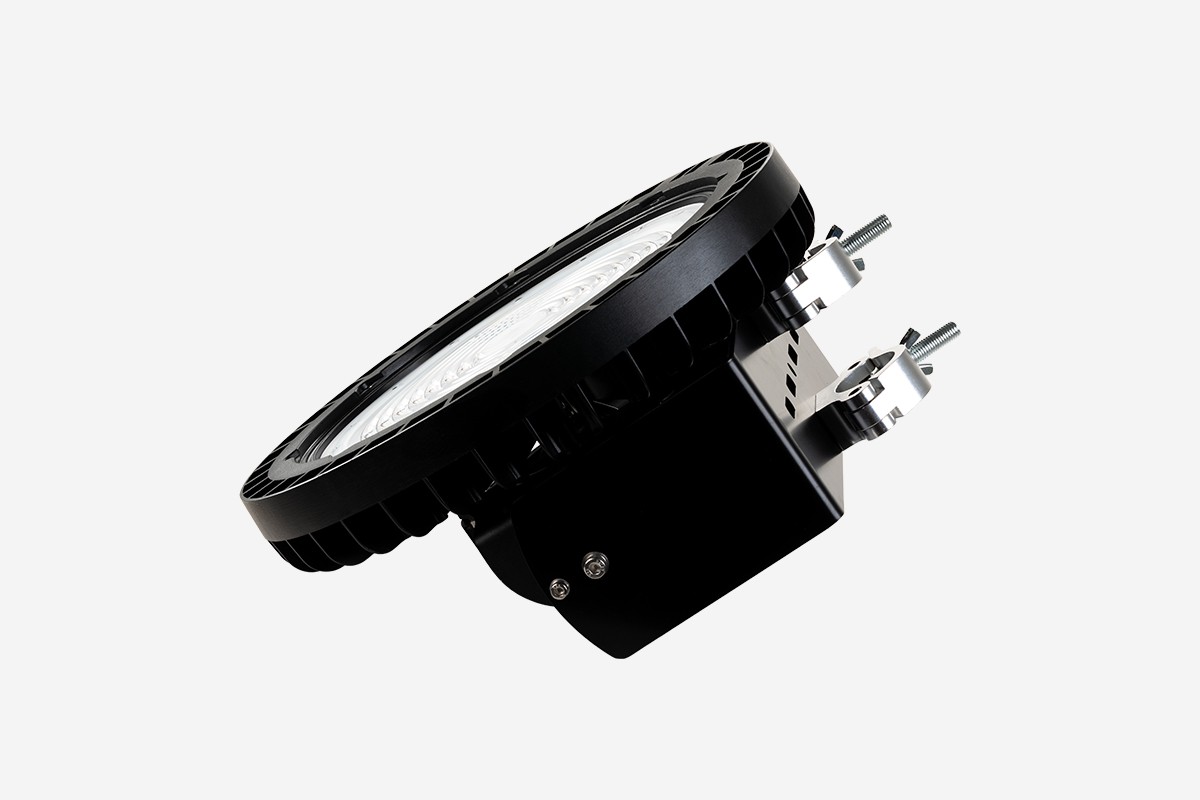

- Mounted on a pipe or scaffold as fixed lighting
| MARINE LED FLOODLIGHT | MLFL-150 | MLFL-120 | MLFL-150-spot |
|---|---|---|---|
| Electrical Characteristics | |||
| Nominal Voltage | 110 - 230VAC; 50 - 60 Hz | ||
| Operating Voltage | 90 - 305VAC; 110 - 400VDC | ||
| Total Power | 150W | 120W | 150W |
| Power Factor | > 0,95 | > 0,95 | > 0,95 |
| Total Harmonic Distortion | <20 % | ||
| Operating Temperature | -40°C to +50°C | ||
| Light Technology Characteristics | |||
| Initial Total Lumens | ~22000lm | ~16000lm | ~18000lm |
| Luminary Efficacy | ~145lm/W | ~135lm/W | ~120lm/W |
| CCT (Correlated Colour Temperature ) | 4500K to 5500K | ||
| CRI (Colour Rendering Index) | 80 - 85 | ||
| Light Angle | 120° | 120° | 60° or 90° |
| Protection, Construction, Dimensions | |||
| IP Rating | IP 66 | ||
| Protection | IK10, OVP, OTP | ||
| Removable Protective Cover | Self-adhesive protective PET foil; 0,3mm thick | ||
| Housing | Aluminium alloy powder painted or cataphoresis | ||
| Fixture Weight | 6kg | ||
| Dimensions | D380 x H114mm | ||
